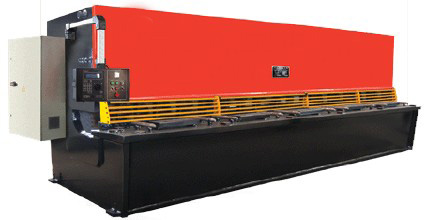

QC12K數控擺式剪板機
數控擺式剪板機性能與特點:
· 液壓傳動、擺式刀架。機架整體焊接堅固耐用，使用氮氣缸回程，平穩迅速。
· 具有無級調節行程的功能，上下刀片刃口間隙量用手柄調節，刀片間隙均勻快速易調。
· 防護柵與電器連鎖確保操作安全。
· 數控系統與位置編碼器組成閉環控制系統，速度快、精度高、穩定性好、能保證后擋料位移尺寸的精度，
同時數控系統具有精度補償功能及自動檢測的多種附加功能。
· 主要技術參數：
| 機床型號 | 可剪板厚mm | 可剪板寬mm | 剪切角 | 行程次數 | 后擋料范圍mm | 主電機功率KW |
| QC12K-4×2500 | 4 | 2500 | 1°30' | 18 | 20-600 | 4 |
| QC12K-4×3200 | 4 | 3200 | 1°30' | 18 | 20-600 | 7.5 |
| QC12K-4×4000 | 4 | 4000 | 1°30' | 12 | 20-600 | 7.5 |
| QC12K-4×6000 | 4 | 6000 | 1°30' | 7 | 20-800 | 11 |
| QC12K-6×2500 | 6 | 2500 | 1°30' | 18 | 20-600 | 7.5 |
| QC12K-6×3200 | 6 | 3200 | 1°30' | 14 | 20-600 | 7.5 |
| QC12K-6×4000 | 6 | 4000 | 1°30' | 12 | 20-600 | 7.5 |
| QC12K-6×6000 | 6 | 6000 | 1°30' | 7 | 20-800 | 11 |
| QC12K-8×2500 | 8 | 2500 | 1°30' | 14 | 20-600 | 11 |
| QC12K-8×3200 | 8 | 3200 | 1°30' | 10 | 20-600 | 11 |
| QC12K-8×4000 | 8 | 4000 | 1°30' | 8 | 20-600 | 11 |
| QC12K-12×2500 | 12 | 2500 | 2° | 10 | 20-600 | 15 |
| QC12K-12×3200 | 12 | 3200 | 2° | 9 | 20-600 | 15 |
| QC12K-12×4000 | 12 | 4000 | 2° | 8 | 20-600 | 18.5 |
| QC12K-12×6000 | 12 | 6000 | 2° | 6 | 20-600 | 18.5 |
| QC12K-16×2500 | 16 | 2500 | 2° | 8 | 20-800 | 18.5 |
| QC12K-16×3200 | 16 | 3200 | 2° | 7 | 20-600 | 18.5 |
| QC12K-16×4000 | 16 | 4000 | 2° | 5 | 20-600 | 18.5 |
| QC12K-20×2500 | 20 | 2500 | 2°30' | 7 | 20-800 | 22 |
| QC12K-20×3200 | 20 | 3200 | 2°30' | 6 | 20-800 | 22 |
| QC12K-20×4000 | 20 | 4000 | 2°30' | 5 | 20-800 | 22 |
| QC12K-25×2000 | 25 | 2000 | 3° | 8 | 20-800 | 37 |
| QC12K-25×2500 | 25 | 2500 | 3° | 6 | 20-800 | 37 |
| QC12K-25×3200 | 25 | 2500 | 3° | 5 | 20-800 | 37 |
| QC12K-25×4000 | 25 | 4000 | 3° | 4 | 20-800 | 37 |
| QC12K-32×2500 | 32 | 2500 | 3° | 4 | 20-1000 | 45 |
| QC12K-32×3200 | 30 | 3200 | 3° | 4 | 20-1000 | 45 |
| QC12K-40×2500 | 40 | 2500 | 3° | 4 | 20-1000 | 55 |
